Brief Introduction

Pneumatic intelligent servo milling machine is a milling and grinding equipment used in the field of grain processing for corn, wheat, and other grains. It automatically adjusts the roller gap according to the material. Suitable for supporting complete sets of equipment for the co production of large and medium-sized corn, miscellaneous grains, and wheat, and can also be applied to material crushing in distilleries and feed fields.

Function and Feature

1.Intelligent system.
Pneumatic intelligent servo grinding machine automatically adjusts the gap between the grinding rollers according to the material.
2.Independent transmission feeding and grinding system.
Each pneumatic intelligent servo mill has two independent transmission, feeding, and grinding systems.
3.Intelligent operation.
The pneumatic intelligent servo mill adopts full pressure automatic control, which can be controlled by a single machine, remote centralized control, or fully automatic computer control.
4.Negative pressure suction device.
The pneumatic intelligent servo grinding machine is equipped with a negative pressure suction device inside the grinding core, which can reduce the temperature of the grinding roller and the material.

Working Principle

This machine adopts complete pneumatic automatic control.
Internally install an air duction device, which can improve feeding station and reduce the temperature of grinding roller and material.

Finished Product

Technical Parameter

This is machine is suitable for small and medium scale of corn, coarse grains and wheat processing project.
Model: HX100/25
Corn grits capacity: 1.5-2t/h
Corn flour capacity: 0.35-0.4t/h
Speed of fast roller: 450-600r/min
Fast roller and slow roller speed ratio:  1.25:1   2.5:1
Power: 30-5.5kw
Weight: 3360kg
Dimension: 1.8m×1.5m×1.9m

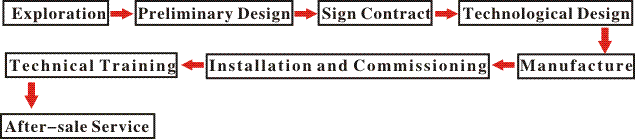

After-sale Service
