HX125-30 Pneumatic Maize Milling Machine for Flour Grinding

Product properties
  • Summary:

    The HX series of pneumatic maize milling machines are the main equipments for flour grinding. The machine mainly processes corn, wheat and other grains. It is suitable for large and medium corn and other grains co-production whole set project.

Brief Introduction

The HX series of pneumatic maize milling machines are the main equipments for flour grinding. The machine mainly processes corn, wheat and other grains. It is suitable for large and medium corn and other grains co-production whole set project.

Function and Feature

1. Complete sealing design and duplex structure.
2. Electrostatic coating.
3. Pneumatic control, single machine control, remote centralized control, automatic computer control.
4. Frequency conversion feeding.
5. Negative air suction device installation.

Working Principle

Pneumatic Maize Milling Machine is a kind of milling equipment applied to corn, wheat and other grains in the field of grain processing, and the clearance between rollers is automatically adjusted according to materials. It is mainly ground into flour by a pair of grinding rollers with speed difference and relative rotation. During operation, materials are extruded, sheared and stripped to achieve crushing and grinding effect. Each grinder has two sets of independent transmission, feeding and grinding systems, playing their respective functions in the powder path.

Finished Product

Finished Product of HX125-30 Pneumatic Maize Milling Machine for Flour Grinding

Technical Parameter

Type Capacity(t/h)
Fast Roll Speed
(r/min)
Fast Roller &
Slow Roller Speed Ratio
charging Roller
Speed Ratio
Power(kw) Weight(kg) Dimension(mm)
Corn Grits Corn Flour
HX125/25 2.5-3 0.45-0.5 450-600
1.25:1
1.5:1
2:1
2.5:1
2:01
1.4:1
1:1
30+5.5 4100 2072×1490×1925
HX100/25 2-2.5 0.35-0.4 450-600 3360 1822×1490×1925
HX80/25 1.5-2 0.25-0.3 450-600 3000 1622×1490×1925
HX125/30 3-3.5 0.55-0.6 450-600 45+7.5 5000 2072×1690×1925
HX100/30 2.5-3 0.45-0.5 450-600 3800 1822×1690×1925

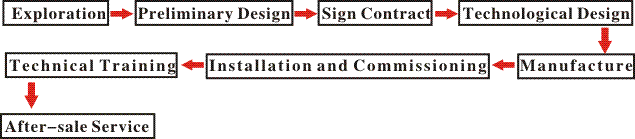

After-sale Service
