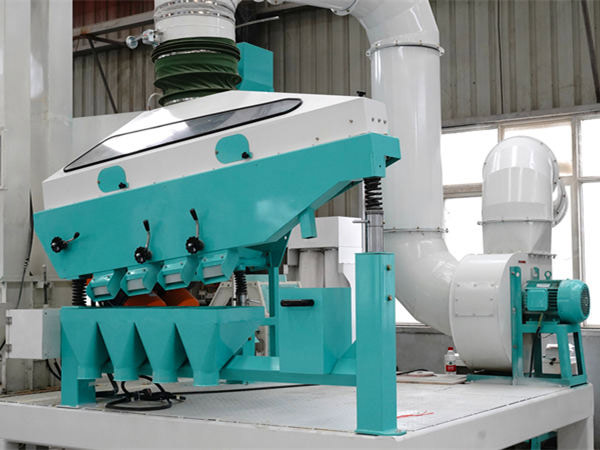

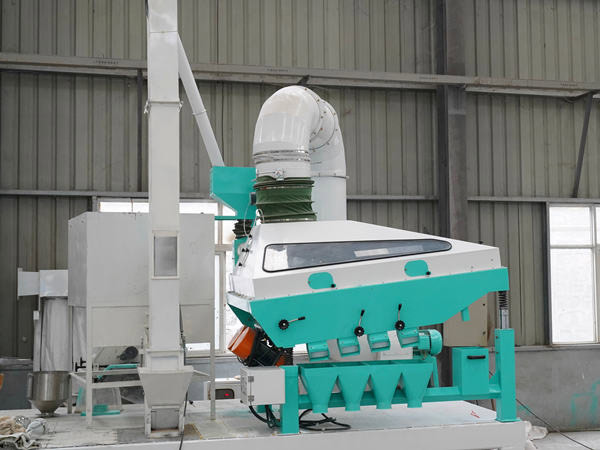

HJX2000 Gravity Germ Separator/Grain Destoner

Product properties

Summary:
National Patent No.: one germ extractor ZL 2010 2 0691738.4
Capacity：corn 2.5-3ton per hour; other4-6ton per hour
Application：selects cereals, broken grains, durum wheat semolina, maize and wheat germ, seeds, oil-seeds, coffee beans, peas, beans, nuts

Email Chat

Brief Introduction

1. After refined deembryo screening of corn, the grain mixture containing embryois effectively separated from the endosperm and embryo by grain gravity sorter.
2. Selected seeds and various grains, such as beans and oats, can be separated bygravity to separate all kinds of impurities, such as mouldy grains, moth-eatengrains, immature grains, etc.
The machine is also suitable for:
Coffee -cocoa beans-hazeinuts-almond -barley-corn - wheat - sunflowerseeds - beans -rice - corn selection embryo, etc. lt can also remove fragments ofstone, glass or metal.

Function and Feature

1.Optional – Autoregulation system
The load control system provides a continuous flow meter placed at the exit of the selected product and a control unit equipped with the touch panel.
2.Operation is simple and intuitive
Once properly adjusted the gravity separator and stored the reference value, the PLC activates a control loop via an inverter that feeds the vibromotors.
3.Finished product constant quality
This system automatically handles the adjustment of the machine so that variations in flow or density does not affect the optimal and constant quality of the selected products.
4.Self-R&D with quality assurance
The material structure and production process of this machine have been structurally improved, and the product quality is reliable.

Working Principle

1.Totally enclosed, vacuum operated machine consisting of a supporting frame, an oscillating deck, an exhaust hood and a feed control device.
2.The selected products are conveyed to an outlet having four fixed outlets and three diverting valves for products division.
3.Oscillating frame with aluminium working deck covered with easily removable wire mesh or stainless steel screen.
4.Constant loading is ensured by the feed group provided with a spring loaded valve for air- tight operation. Large polycarbonate windows allow visual control of working deck.
5.The technological setting up can be performed with machine in operation by means of devices adjusting the longitudinal and cross angle.

Finished Product

Finished Product of HJX2000 Gravity Germ Separator/Grain Destoner

Technical Parameter

Type	Capacity（t/h）		Power（kw）			Air Volum （m³/h）
Type	corn	cereals	motor	low pressure air	voltage	8000-11000
HJX2000	2.5-3	4-6	0.75×2	7.5-11	10w/220v	8000-11000
