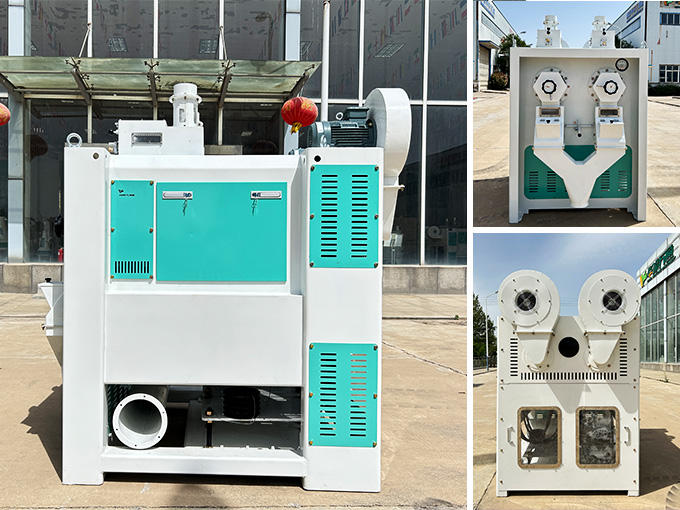

HTPT17 Energy Saving Maize Peeling and Germination Machine

Product properties
  • Summary: The latest research and development of HTPT17Dx2 corn energy conservation erasure polishing machine by Win Tone Machinery fills the gap of special corn erasure polishing equipment for corn package processing plant. With excellent performance indicators, it is applicable to equipment selection of various new corn processing lines and upgrading and reconstruction of old and old corn production lines.

Brief Introduction

HTPT17 × 2 corn energy-saving de-epolishing machine is a new generation of husk (husk) stripping equipment, mainly used for fine processing of corn, rice, grocery grains, etc. It can remove corn, wheat, rice skin and germ, barley husk, etc. by configuring different screens. The machine has the advantages of low power consumption, high efficiency and low crushing. It has a far-reaching significance for corn processing enterprises to improve the yield of quality products, reduce the power consumption per ton of materials, and realize grain saving and loss reduction. It is a new generation of high-efficiency and energy-saving equipment in the corn processing industry.

Function and Feature

1.High efficiency
The working efficiency of the machine is increased by over 40%, greatly increasing the production efficiency and making the corn processing enterprises more efficient.
2.Low crushing
The damage rate of corn by the machine is reduced by over 60%, the yield of qualified products is increased, and the loss of products is greatly reduced.
3.Low power consumption
Lower power consumption (the power consumption of traditional polishing is 45 × 2kw, and the minimum power consumption of this equipment is only 18 × 2kw), which is more energy conservation and environmental protection.
4.Special equipment
The machine is specially developed for corn processing, with high adaptability and high efficiency to meet various corn processing requirements.
5.Realize grain saving and loss reduction
The machine has a far-reaching application significance, which can realize food saving and loss reduction, reduce power consumption per ton of materials, and have an important significance in reducing environmental burden.
6.Efficient chaff and ground separation
High-speed and high-pressure air injection device is provided, and centralized air network is adopted, which can effectively discharge chaff powder or skin impurities.
7.Good polishing effect
The polishing effect of the machine is obvious, and the polished corn grains are smooth and beautiful.
8.Wide application range
The machine not only has obvious effect in corn processing, but also can be used in the husking, husking, embryo removal, grinding and polishing of wheat, barley, rice and other raw grains. It is multi-functional and widely applicable.

Working Principle

Materials are pushed into the stripping chamber by the propeller after entering from the feed inlet. In the stripping chamber, the materials are moved by the rotating iron roller to produce relative friction, grinding and tumbling between the materials and materials, and between the materials and the components. All the skin layers on the material surface are stripped, and the stripped materials are discharged from the discharge outlet. The milled chaff powder or skin impurities are sucked out by the chaff suction fan through the rice screen.

Finished Product

Finished Product of HTPT17 Energy Saving Maize Peeling and Germination Machine

Technical Parameter

Type Power(kw) Capacity(t/h) Dimension(mm)
corn pelling corn polishing barly pelling barly whitening
HTPT17X2 II 22×2+1.5+1.5 or 18.5×2+1.5+1.5 8-10 8-12 8-10 7-10 1715×1189×1829
