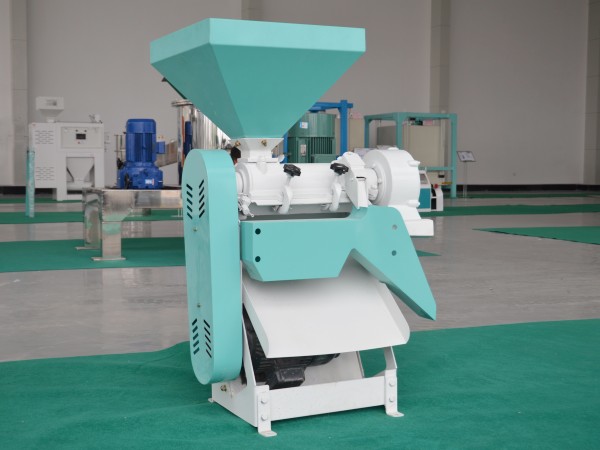

6NF-90 Multifunctional Corn Peeling Machine

Product properties
  • Summary:

    Patent No.: ZL 2010 2 0689527.7
    Capacity:300kg/h
    Application:Used in corn peeling/wheat peeling/rice peeling/sorghum peeling.

Brief Introduction

NF series Corn Peeling Machine can remove the bran both of corn and wheat. There has 380V motor with 3-4KW power installed inside. It can process 300kg-500kg of grains, such as corn, wheat, sorghum and rice.




Function and Feature

1.Multi-function, wide application
It can be used in corn, rice wheat, sorghum, quinoa and other grains
2.Motor and diesel engine configuration
In some areas lacking electricity, diesel engines can also be configured as power transmission;
3.Excellent peeling effect
The ram materials is peeled and clean, no black navel, uniform particles, round and smooth appearance;
4.Energy consumption and cost saving
One motor or diesel engine can drive, save energy, and occupy a small area.

Working Principle

1. The machine includes 5 parts: charge hopper, hulling case, transmission device, separating device, and machinery rack.
2. Corn is sent into machine through charging hopper, and then is sent to hulling case by the screw propeller. The hulling case can produce big pressure, and the germ and bran of corn can be peeled off by the friction between roller and sieve.
3. The discharging outlet has grain purifying device, which can remove the micro bran further. And there has highly efficient air suction chamber installed inside of the machine which can clean the bran from the peeling process.
4. The discharging outlet of the peeling chamber can control the staying time in the peeling chamber for the corn and wheat, which can ensure effective friction between the grains and the alloy roller and realize better peeling effect.

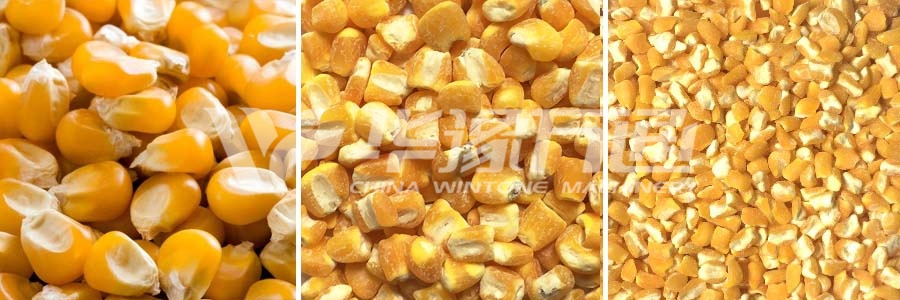

Finished Product

Finished Product of 6NF-90 Multifunctional Corn Peeling Machine

Technical Parameter

Type Capacity(kg/h) Power(kw) Rated Voltage(v) Weight(kg) Dimension(mm)
6NF-90 300 4 380 120 600×500×1200

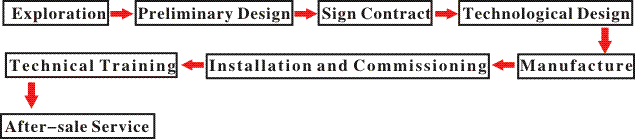

After-sale Service

 after service.jpgafter service.jpg
