Pneumatic Control Corn Flour Mill

Product properties
  • Summary:
    Type: HX
    Power: 30-5.5/45-7.5kw

Brief Introduction

With breaking, cutting, peeling, scraping of the material, the effect of grinding is achieved. This machine is suitable for large, medium size corn grain plants, wheat cogeneration equipment, can also use independently. The series of milling machine are the main facilities of the flour mill, employed for wheat, corn and coarse grain process It depends on one pair of opposite differential rotation to peel materials, extracting the endosperm from the food surface and milling it into flour.

Function and Feature

1.Fully enclosed, duplex structure design, electrostatic spraying surface, bright color, elegant design, and luxurious appearance;
2.Automatic pressure control can be controlled individually or remotely. Flexible feed, convenient controlled by computer, high degree of automation;
3.In addition to pneumatic clutch, electromagnetic clutch can also be applied. Small size, low cost, easy to install, reliable performance.

Working Principle

The grinding roller is eccentric structure, can supported on the frame alone, it constitutes an independent self sustaining institution and good shock absorption; Flat grinding roller set, the material is easy to enter the grinding chamber, efficiency, disassembly and maintenance convenience;
Synchronous rotation roller, powerful transmission, no jump gear, not deviation, smooth operation, low noise, safety and environmental protection;
The central of the machine with negative pressure suction device can improve feeding status, lower roller and the temperature of the material;
End products of grits, flour with uniform particle size, excellent quality, and large output.

Finished Product

Finished Product of Pneumatic Control Corn Flour Mill

Technical Parameter

Type Capacity(t/h) Fast Roll Speed
(r/min)
Fast Roller &
Slow Roller Speed Ratio
charging Roller
Speed Ratio
Power(kw) Weight(kg) Dimension(mm)
Corn Grits Corn Flour
HX125/25 2.5-3 0.45-0.5 450-600 1.25:1
1.5:1
2:1
2.5:1
2:01
1.4:1
1:1
30+5.5 4100 2072×1490×1925
HX100/25 2-2.5 0.35-0.4 450-600 3360 1822×1490×1925
HX80/25 1.5-2 0.25-0.3 450-600 3000 1622×1490×1925
HX125/30 3-3.5 0.55-0.6 450-600 45+7.5 5000 2072×1690×1925
HX100/30 2.5-3 0.45-0.5 450-600 3800 1822×1690×1925

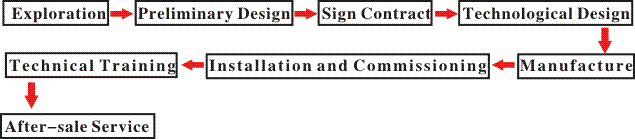

After-sale Service
