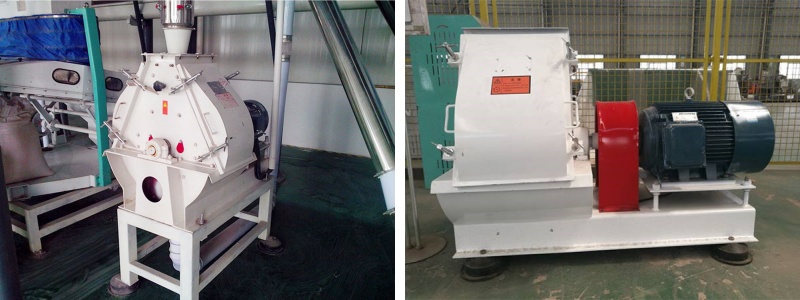

YMSJ Fine Maize Hammer Mill

Product properties
  • Summary:

    Capacity:1.2-5t/h
    Application:Corn Processing

Brief Introduction

This hammer is manufactured in a way to give you the best results in your milling business.The produced maize flour is also guaranteed to be of the best quality and is the best most suitable for your maize flour products like sadza, ugali, fufu,  mealie-pap.
This hammer mill adopts a hammer-type design, which can be used to crush corn, wheat, sorghum and other grains, but is not suitable for crushing materials with high fiber content. It consists of rotor, upper and lower casing, pelletizing chamber, kneading toothed plate, sieve plate, motor and rack.

Function and Feature

1.Efficient crushing efficiency
The water drop-shaped crushing chamber breaks the circulation, and can be crushed for a second time, and the efficiency is improved.
2.Crushed fully
Built-in rotor, material crushing has no dead corners, and the finished product has uniform particles
3.Easy to operate and maintain
Fully open operation door, easy maintenance.
4.Wide application
It can be used to crush corn, wheat, sorghum and other grains, but is not suitable for crushing materials with high fiber content.

Working Principle

When the raw material enters into the pelletizing chamber, under the strike and shearing effect of the professional shear type blade, the cut material kneads and strikes with the sieve plate by the centrifugal drive, which makes the granules surface smooth and makes them become arc shape. The material granules which are smaller than the sieve pore are discharged out of the machine, and granules which are bigger than the sieve pore continue to be cut and stroke until they can pass the sieve pore.

Finished Product

Finished Product of YMSJ Fine Maize Hammer Mill

Technical Parameter

Type Diameter of Rotor(mm) Spindle Speed(r/min) Power(kw) Capacity(t/h) Weight(kg) Rated Voltage(v) Dimension(mm)
YMSJ32×16 320 2500 7.5 1.2 200 380 1100×1100×1400
YMSJ40×18 400 2500 11 1.5 320 380 1200×1200×1500
YMSJ56×40 560 2500 22 2 500 380 1300×1300×1600
YMSJ60×60 600 2500 45 5 750 380 1450×1400×1700

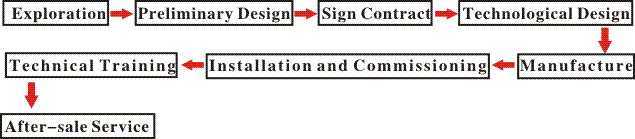

After-sale Service

cooperation flow.jpg
