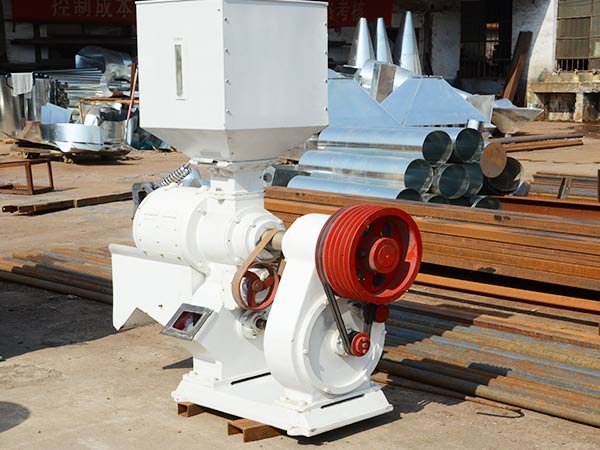

YHMLN Series Maize Peeling and Degerming Machine

Product properties
  • Summary:
    Application:Maize Rice Polishing
    Capacity:1-3T/H as required

Brief Introduction

The rice/corn polishing and degerminator is manufactured according to many experiences based on foreign advanced technology.The machine is made just one time and it also can be combined with hulling machine.



Function and Feature

1.Innovative design
Resonable appearance and compact structure. Reliability via sturdy construction. Easy operation and maintenance.
2.Reliable performance
Great sanitation thanks to bran powder collector; High throughput capacities, high quality, smooth kernels; Bran can be collected by air blower to perfect the surroundings.
3.Widely used
Change belts without removing spindle, easy operation, widely used in rice and corn polishing.
4.Low energy consumption
Reducing Electricity Use and Costs.

Working Principle

Corn or Rice Grain are sent into hulling chamber and moves along the main axis driven by the spiral thruster. The pressure door presses and the crimped roller rotates to rub and hull. Meanwhile, the high-pressure blower spray air into hulling chamber through roller gap to further polish the particles and take heat away. Big bran goes into separation chamber through the sieve. Fine brans are discharged by suction blower and collected by collector.  Clean broken corn is collected at kernel out let.

Finished Product

Finished Product of YHMLN Series Maize Peeling and Degerming Machine

Technical Parameter

Type Capacity(t/h) Power(kw) Rated voltage(v) Weight(kg) Dimension(mm)
YHMLN-115 1-1.5 15 380 240 1050×1020×1150
YHMLN-150 1.5-2 18.5-22 380 320 1189×1020×1430
YHMLN-200 2-3 22-30 380 360 1313×1020×1440

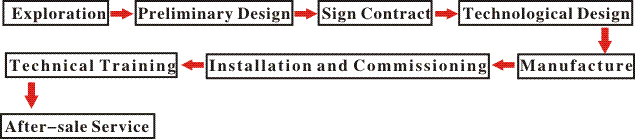

After-sale Service

 cooperation flow.jpg
